SKU: JY-HZ172N4
Ship From: Chinese Warehouse
CPU: QCM6125 Octa Core 64bit ARM 4xA73@2.0GHz 4xA53@1.8GHz
Ram: LPDDR4X 4GB Rom: 64GB

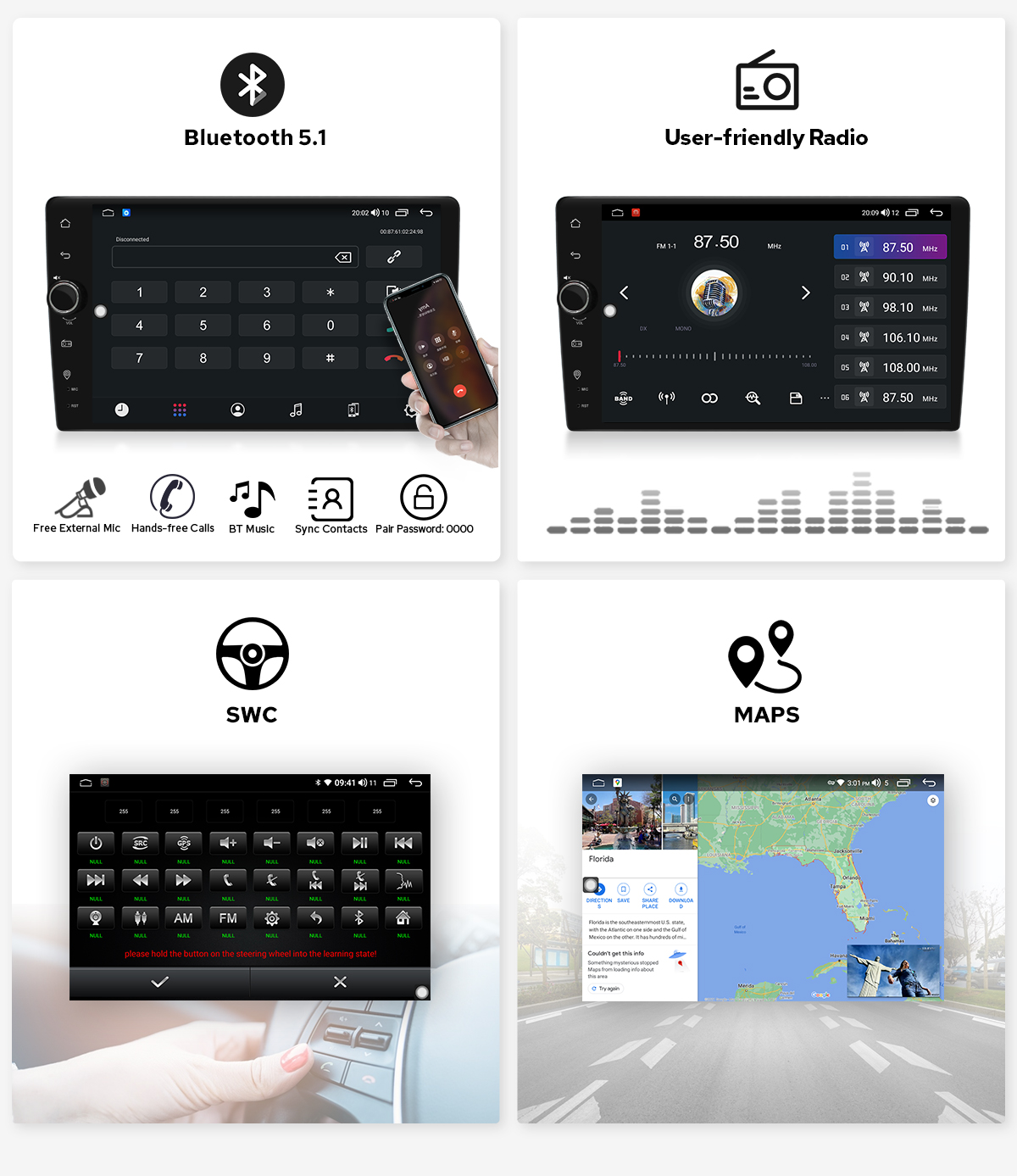

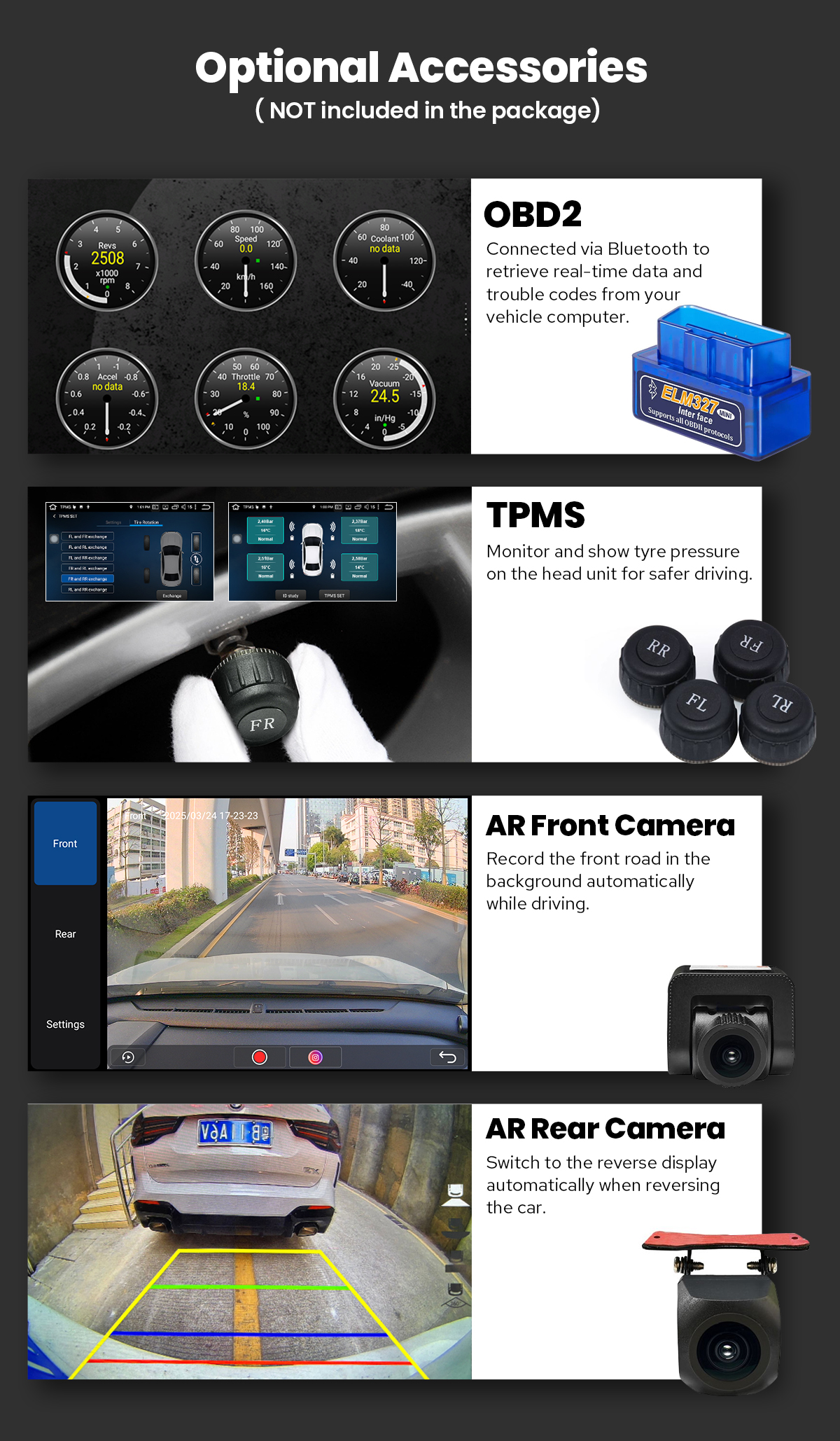

Support Bluetooth, WiFi, DVR, OBD2, Back-Up Camera

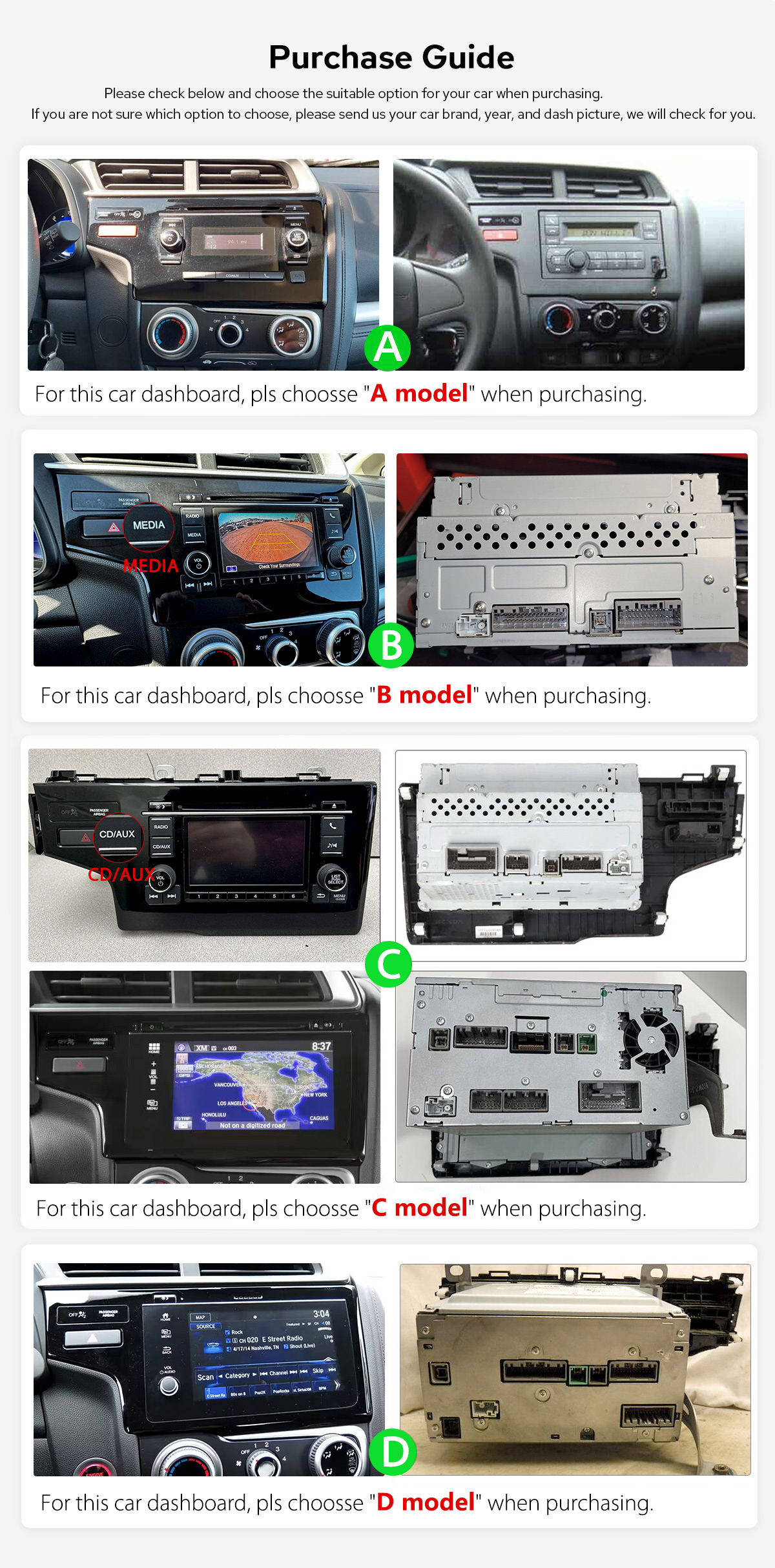

If you are not sure whether the unit can fit your car, please send your car model, year and dashboard picture to info@joyingauto.com or support@joyingauto.com,then we will help you confirm.

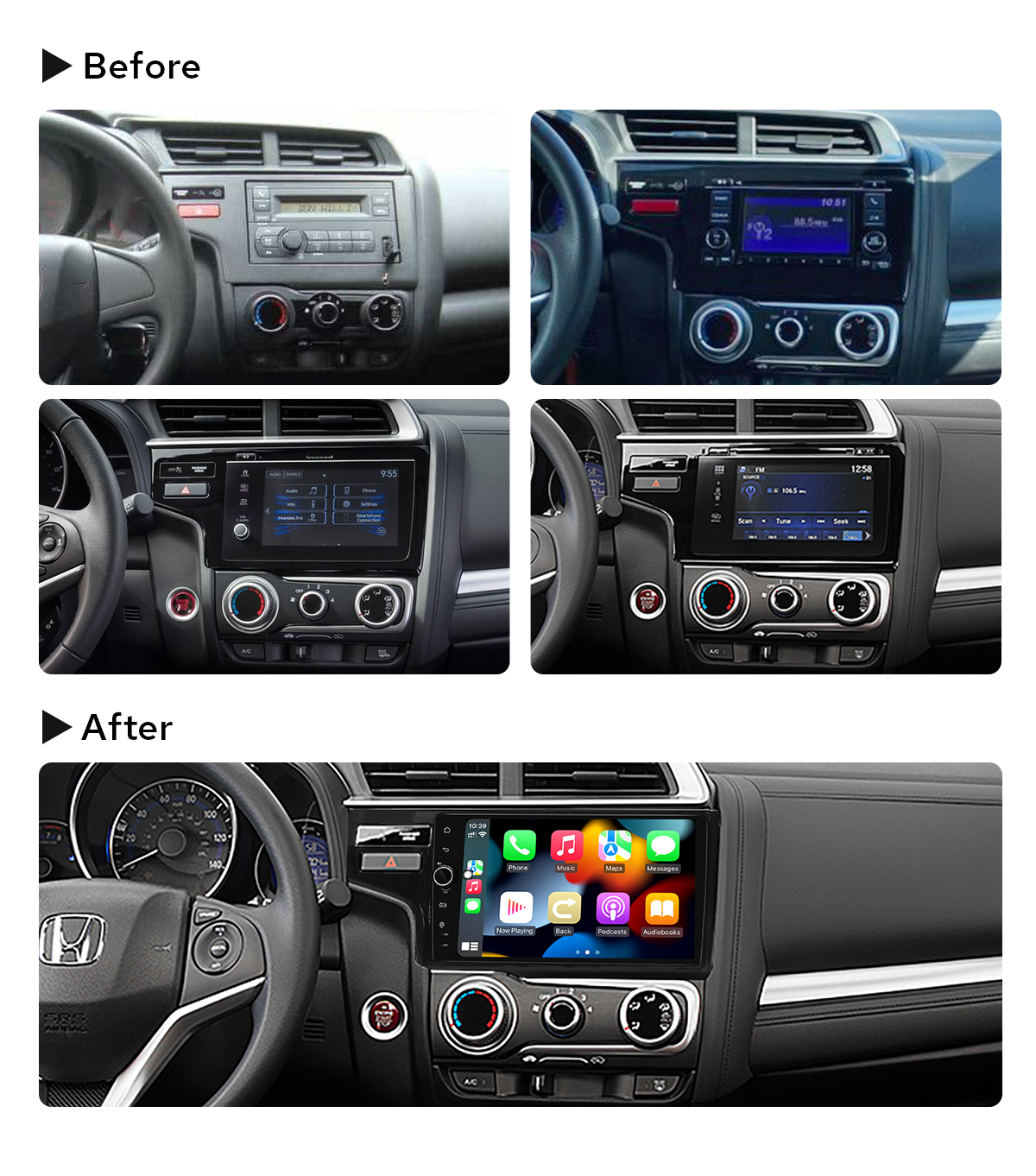

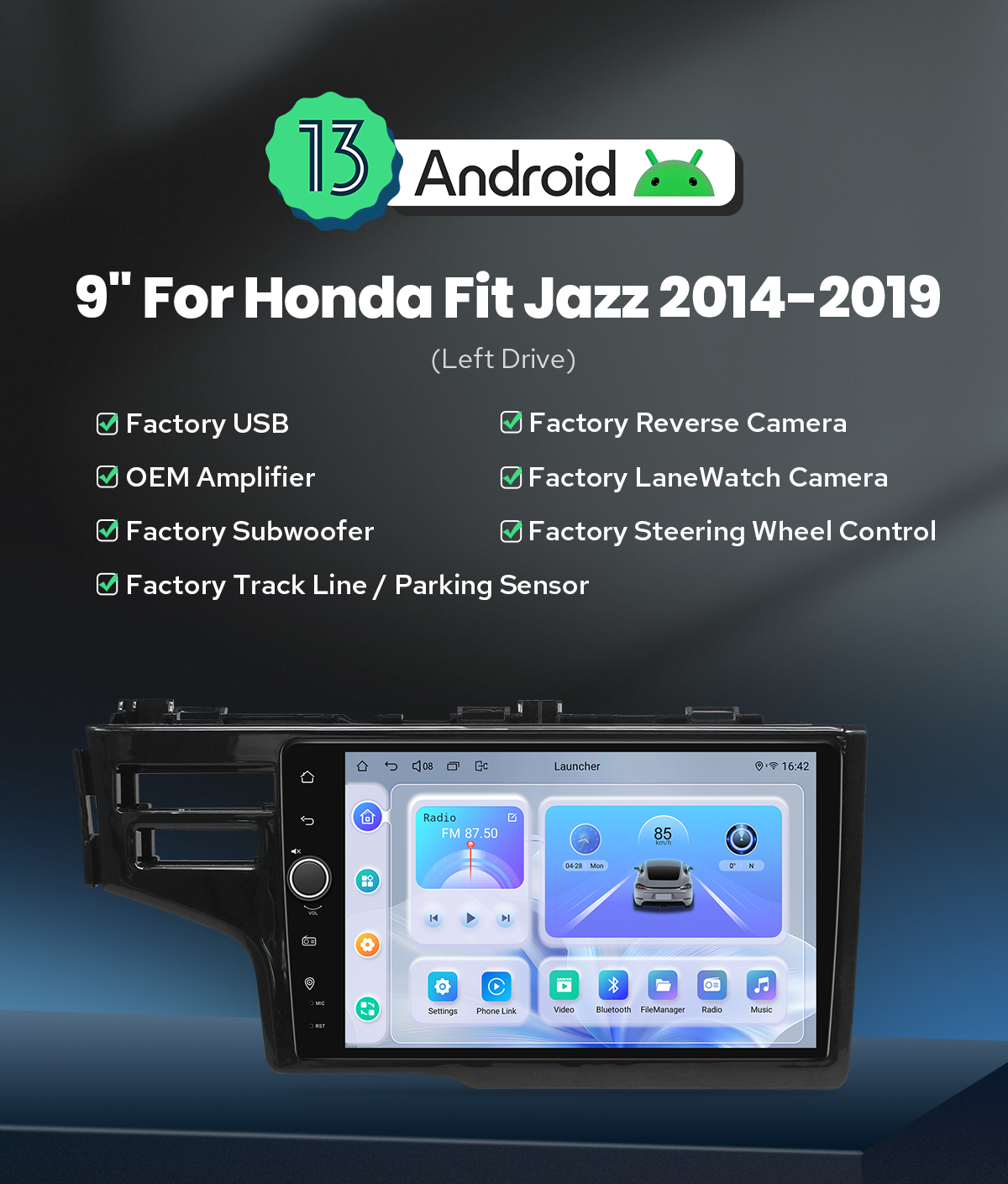

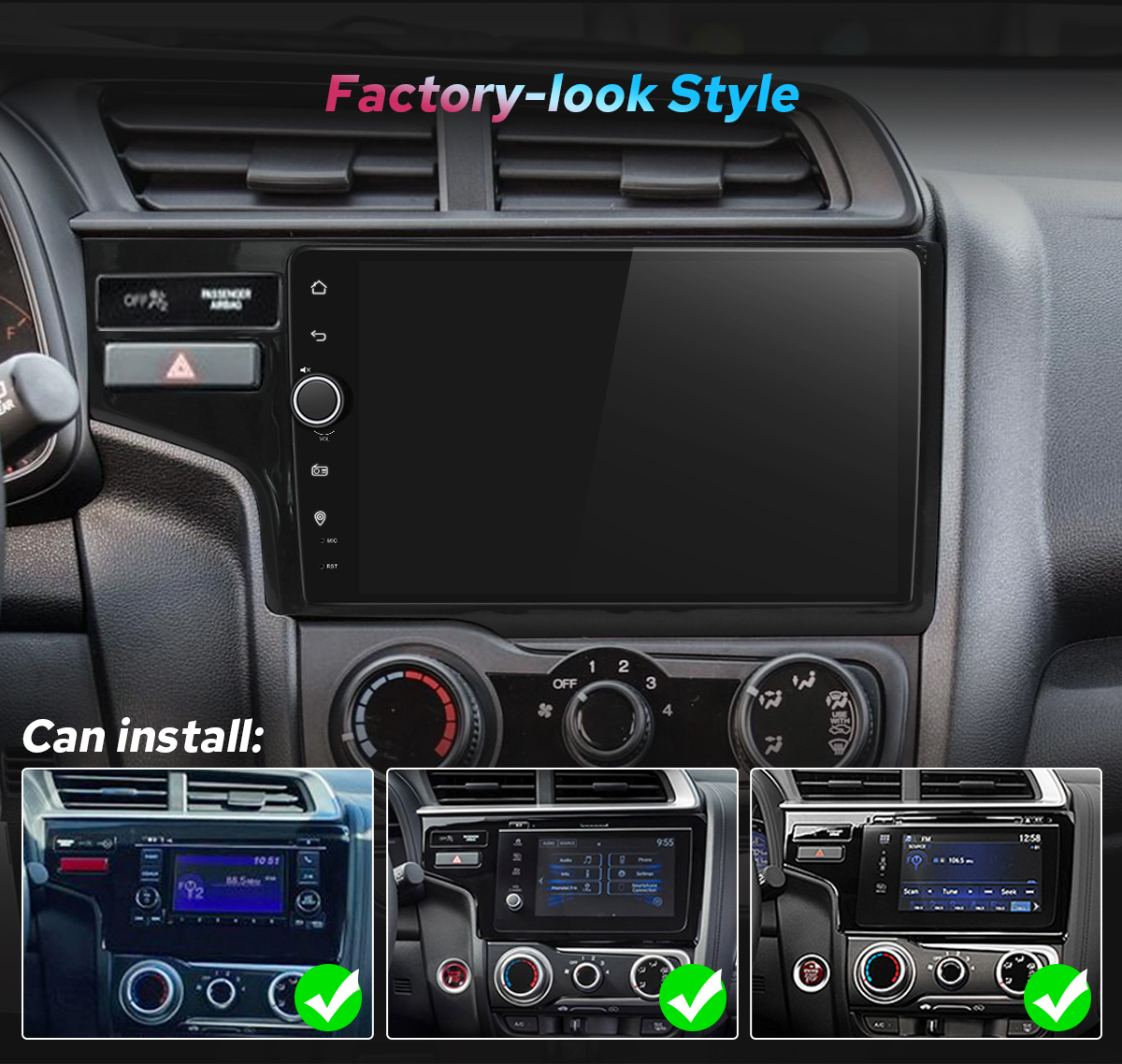

This model is plug and play for your car, it can keep your factory steering wheel control.
Note:
1. Joying head units can't support like below: iPod, factory GPS antenna, factory Bluetooth antenna, factory Microphone. You can use our included GPS antenna and mic.
2. Please don't upgrade your unit with other firmware that isn’t provided by Joying. Otherwise, you may not upgrade your unit anymore and also will lose our 2-year warranty.
3. All the price shown on this website is in USD.
Shipping:
1. We provide free shipping to most countries, some remote countries need to pay a $30 remote shipping fee.
2. Your order can be shipped out around 3 working days after the payment is done, and takes another around 5-10 days to arrive via DHL, Fedex, EMS, or Aramex.
3. We will send the tracking number to your email after the order shipped out, please make sure the email address you provided is correct.
Customs:
1. If you purchase from our Chinese factory, the customs fee is needed in most countries, it is charged by your local custom.
2. If you purchase from our US/AU/EU warehouse, no need to pay any customs fee.
3. US warehouse can only ship to America, AU warehouse can only ship to Australia, EU warehouse can only ship to EU countries. Chinese warehouse can ship to all countries.
Warranty: We provide 2 years warranty, click here to get more return & warranty details.
Operating System | Android 12 |
---|---|
CPU Processor | QCM6125 Octa Core 64bit ARM 4xA73@2.0GHz 4xA53@1.8GHz |
RAM | 4GB/8GB |
ROM | 64GB/128GB |
Resolution | 1280*800 |

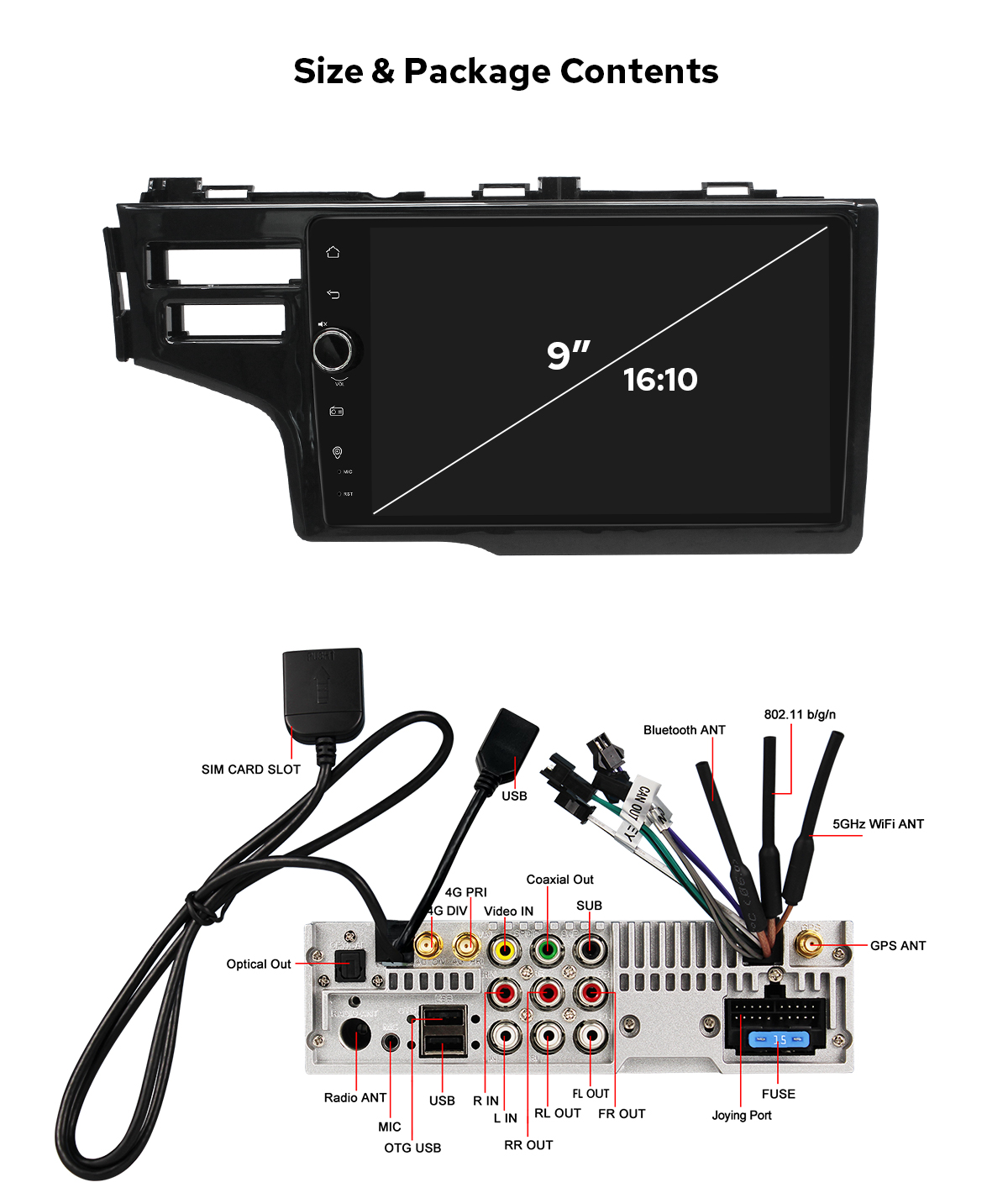

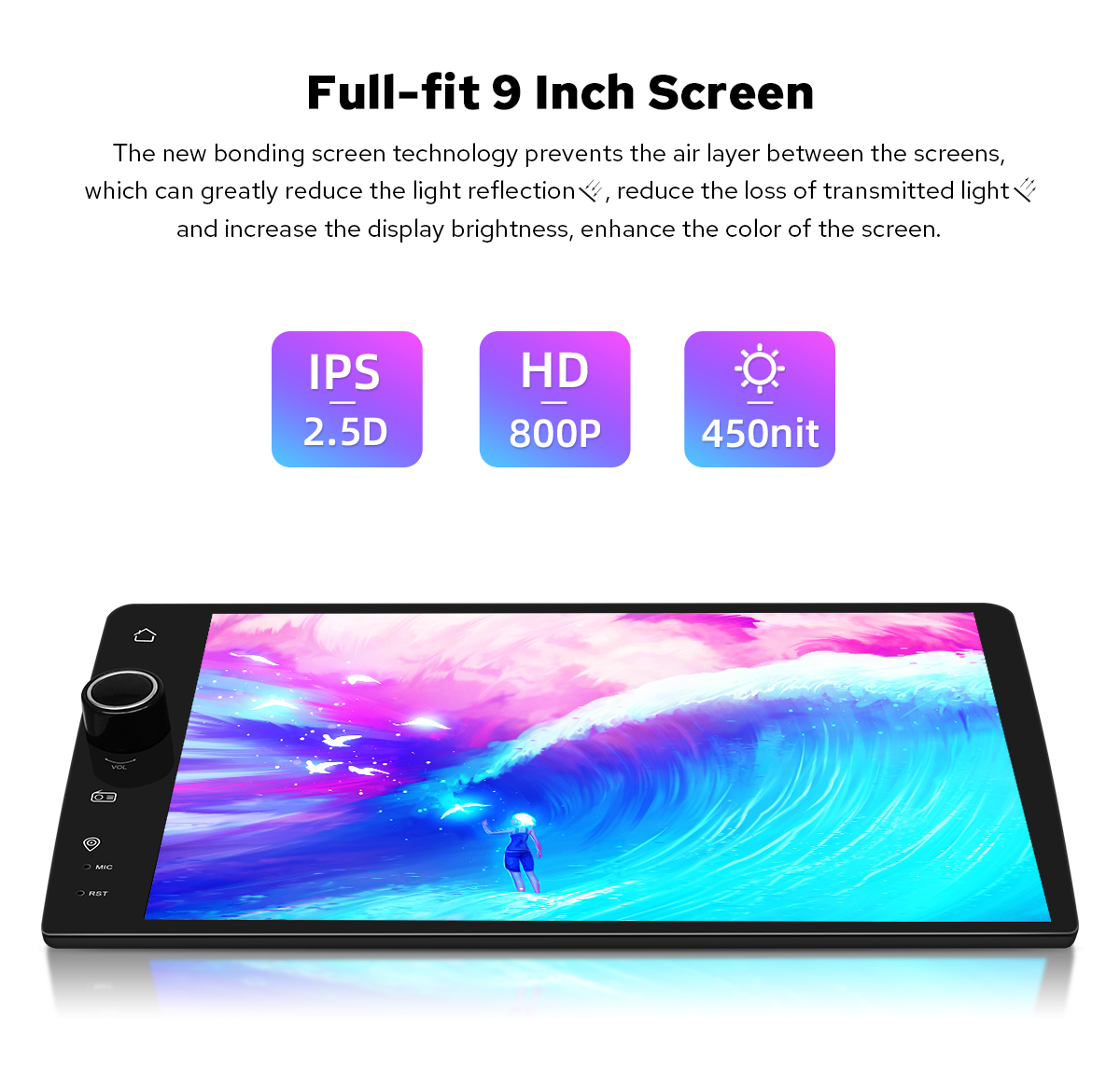

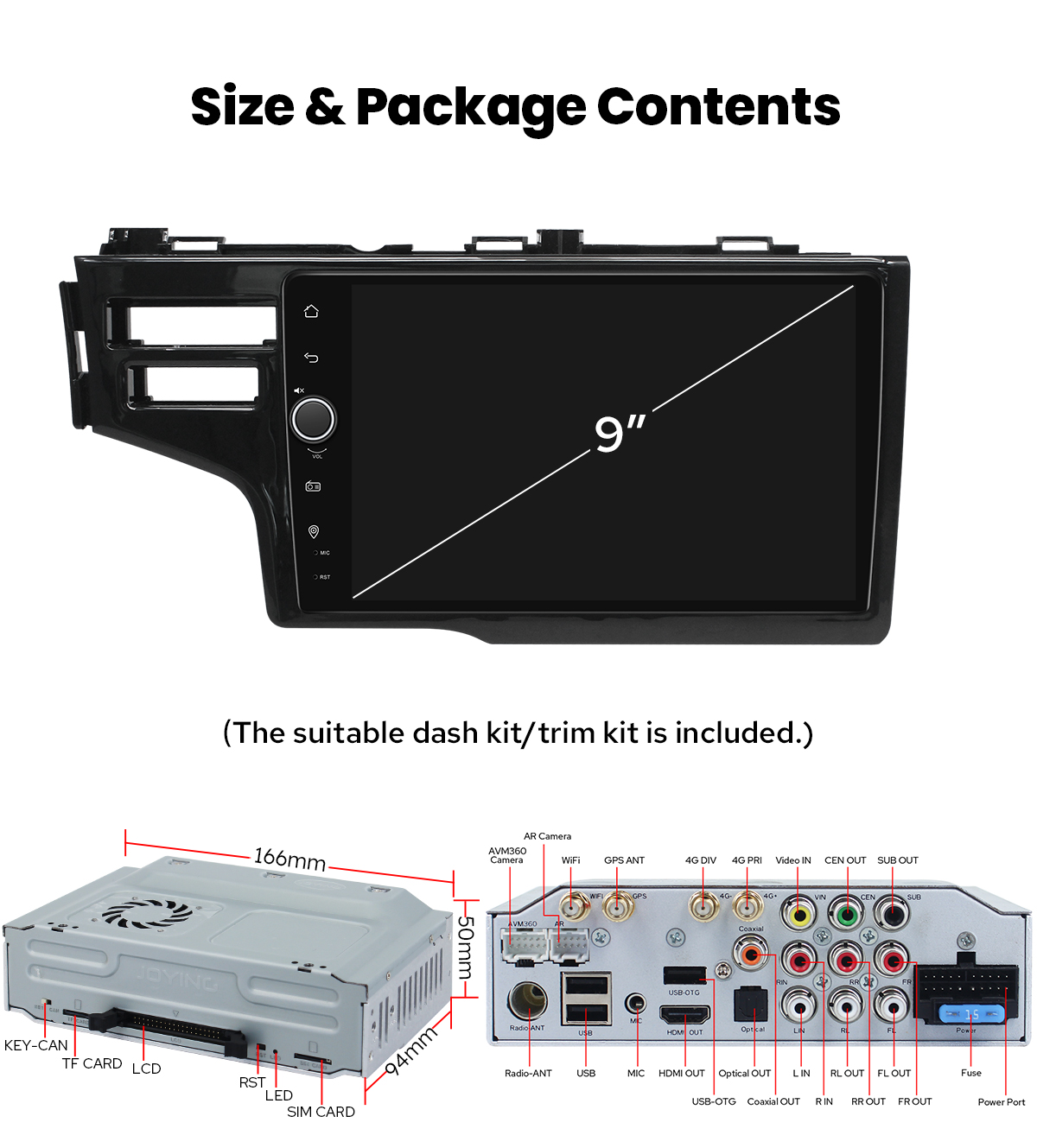

Screen Size | 9" |
Bluetooth | Bluetooth 5.0, support hands-free phone call and Bluetooth music |
Microphone | Built-in Microphone in the control panel also includes external Microphone |
Working Voltage | 10V-14V |
Working Temperature | -20℃-70℃ |
Radio Chip | SI47925 |
Amplifier IC | TDA7851 |
Audio Power Output | 4X50W |
HDD | Support external hard drive with up to 500GB storage |
APP | Support most Android apps |
Password for Setting | 8888 |
Boot up logo | Support to customize boot up logo |
OSD Language | Support 50+ kinds of languages, including English/Spanish/French/German/Portuguese/Italian/Russian/Turkish/Hebrew/Polish, etc. |

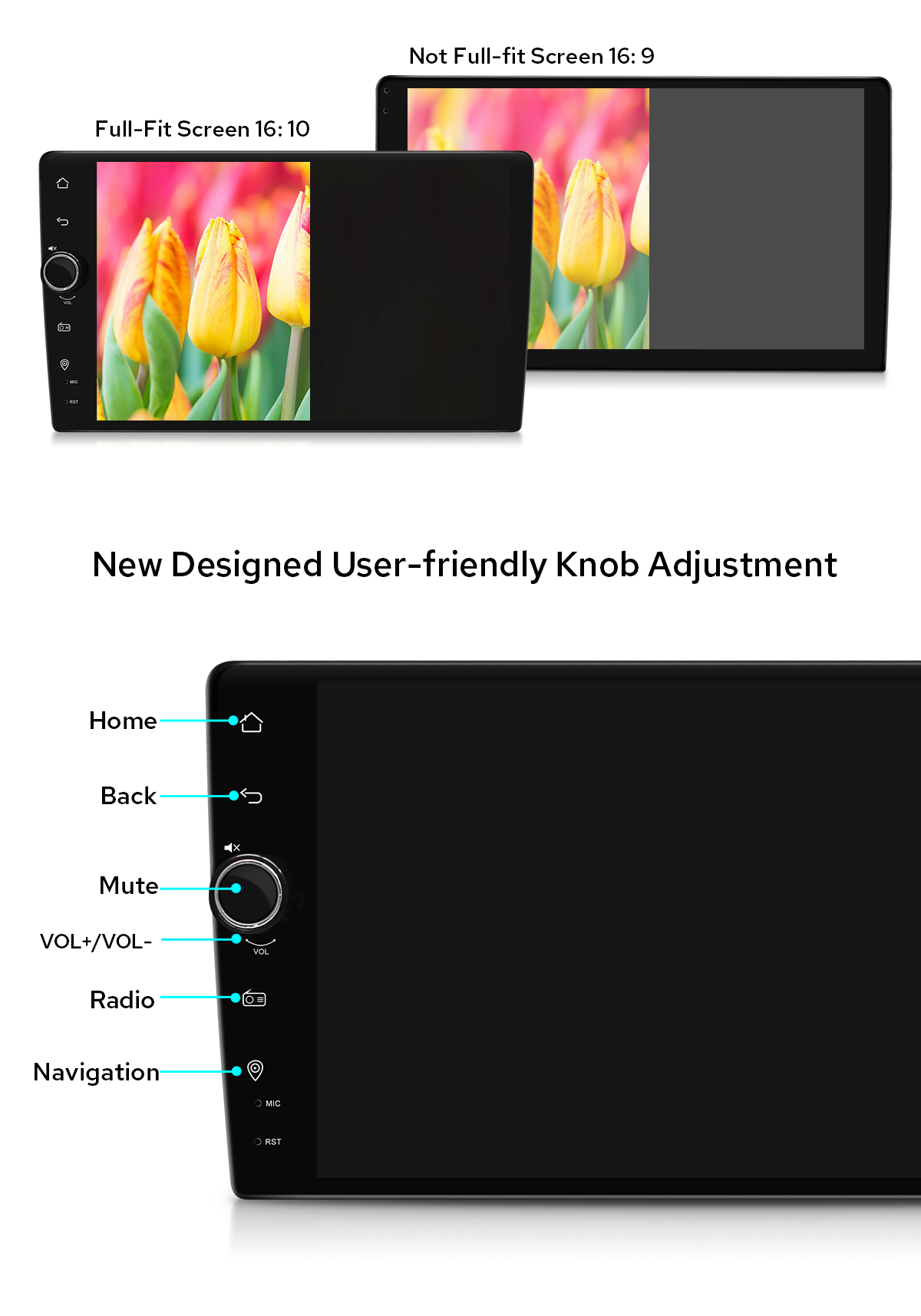

Touch Screen Type | Capacitive touch screen |
Boot up Time | 2s |
Brightness Adjustment | Support |
AM/FM | Support |
Subwoofer Output | Support |
HDMI Output | Support |
Audio out | Support |
Video in | Support |
GPS | Build in Google map |
SWC | Support factory steering wheel control, some vehicle may need special canbus harness |
Coaxial Output | Support |
Optical Output | Support |
Mirror Link | Support |

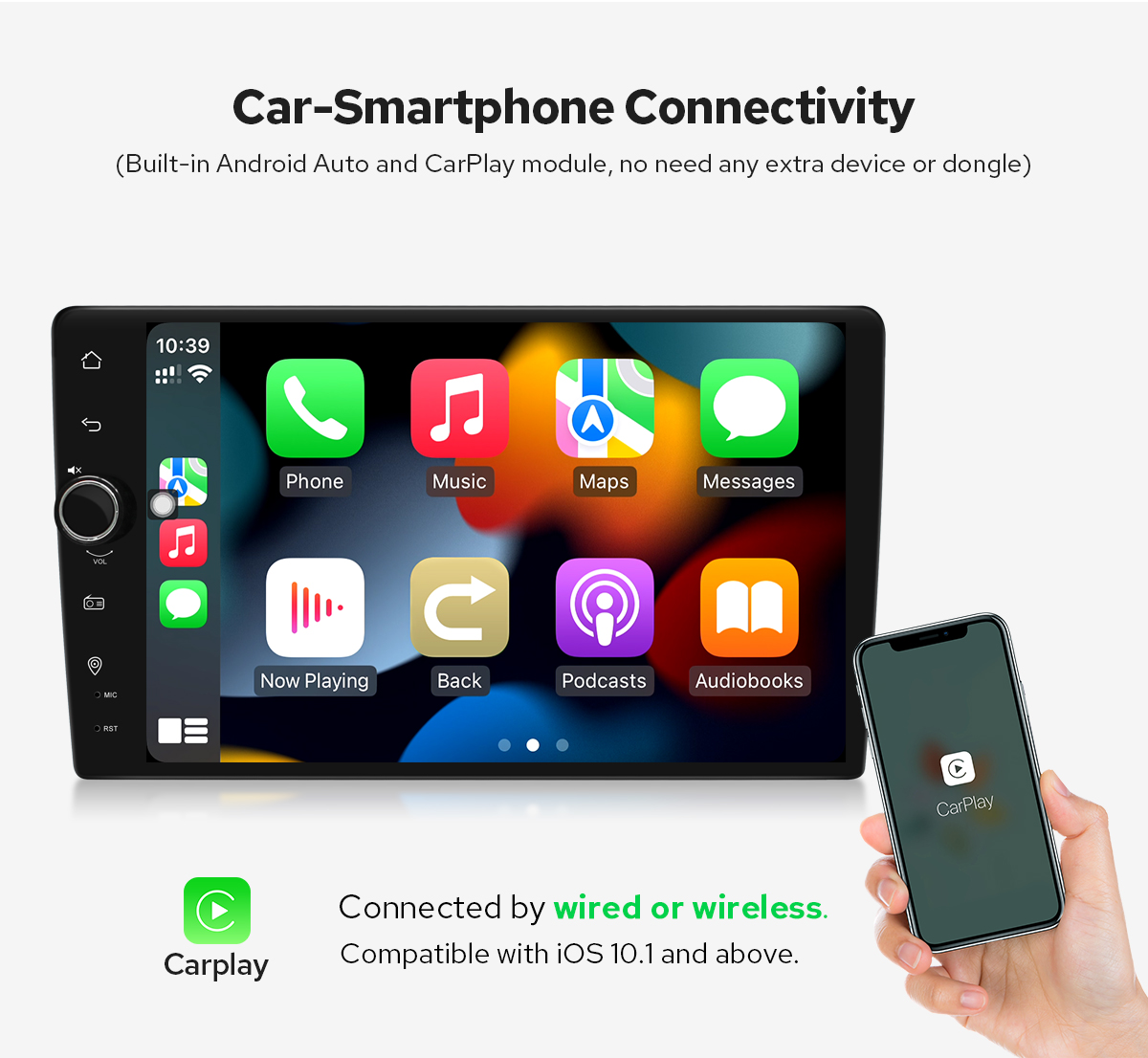

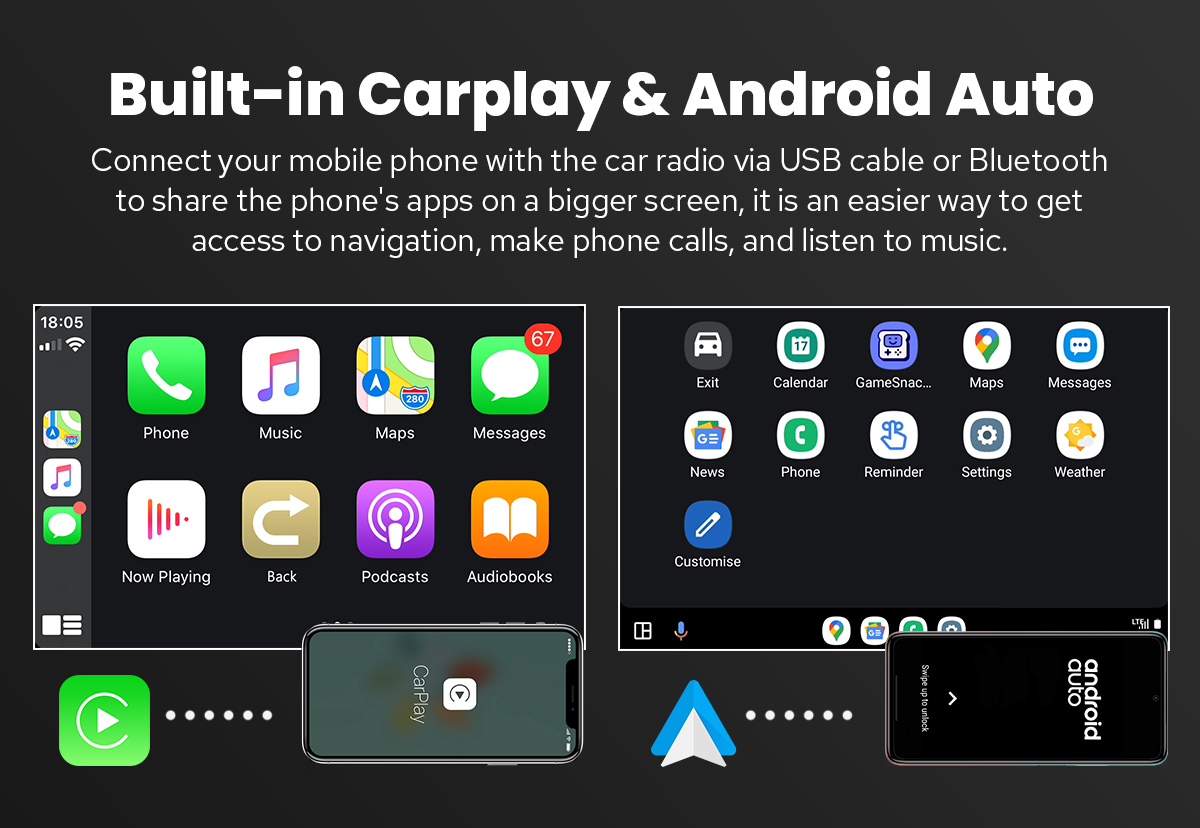

CarPlay | Support wired/wireless CarPlay |
Android auto | Support wired/wiress Android Auto |
